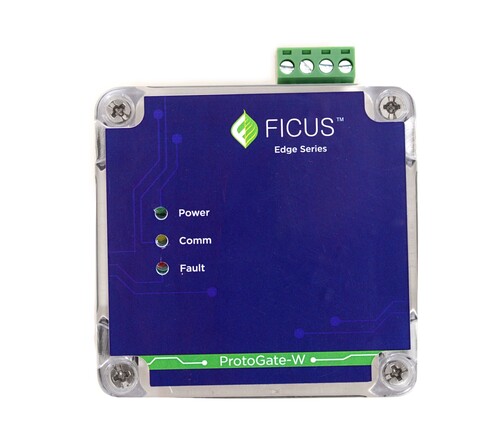

Modbus-Cloud Gateway GSM-4G Ficus ProtoGate

Product Description

ProtoGate is a gateway device to read data from energy meters flow meters level sensors and all types of field devices with ModbusRS485 interface Communicate the data to the server cloud or Onpremise using GSM  4G

IOs

RS485Modbus

Local Storage

Onboard SD card 816GB

Data logging on SD card

Power

DC Input 24VDC

Communication

Cloud Communication via GSM 4G

Supports Modbus MQTT HTTPS protocol

Other Specifications

RTC Support

Server timeNTP time synchronization

Configurable Time zone

LED Indications 3

Operating Temp From 10 to 70

Humidity 0  90 noncondensing

Mounting DIN Rail  Wall mounting with Screw

IP Protection Two form factors

IP 20

Enclosure Polycarbonate Transparent Cover and ABS Opaque Base

Color Light Grey RAL 7035

User Cases

Cloud Gateway Oneway Communication

Data retrieval through ModbusRS485 from devices such as energy meters flow meters level sensors etc

Device Configuration

Device hosted configuration web page

The device has onboard hosted configuration webpage User can enter required details such as mapping tables for register address server URLs credentials and other details in the configuration file Upload the file and reboot the device
